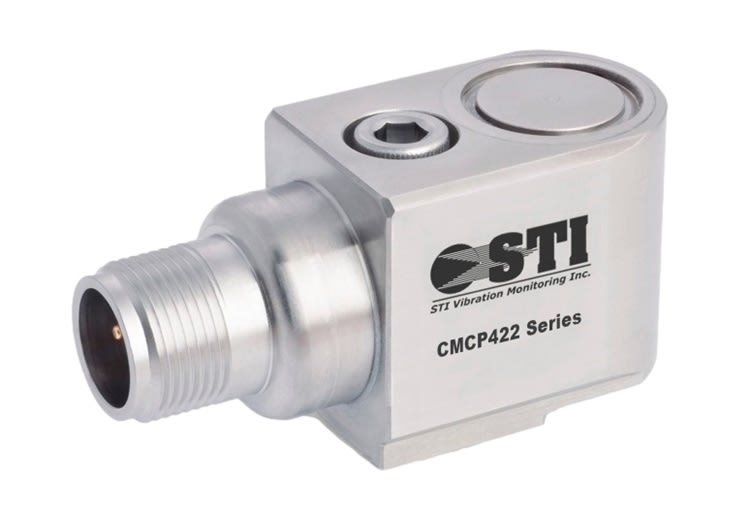

Side Exit M12 4-Pin Eurofast Connector, Transmitter

CMCP422ATS-M12 Side Exit, M12 Connector

Choose your options:
422 Series Range:
Signal Detection:
Connector Type:
Product Code: CMCP422ATS-M12
Typical Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.
  • Loop Powered
  • Acceleration Output (Standard 10 Hz to 5.0 kHz)
  • RMS or Peak Detection
  • Side Entry, 4 Pin M12 Connector
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248°F (-25 to 120°C) Temperature Range
  • 1/4" x 28 UNF Captive Bolt
The CMCP422ATS-C Series are loop powered 4-20 mA output sensors which are capable of interfacing directly to an analog input card on a PLC or DCS system. The 4-20 mA output is proportional to the full scale range in terms of Acceleration (g's) and are capable of transmitting signals over a long distance without signal loss. The M12 connector allows the sensor to work with a separate cable assembly such as the CMCP605M series cables.
CMCP422ATS-M12 Data SheetCMCP422S-M12 DRAWINGCMCP422S-M12 DXFInstallation GuideCMCP422 Manual
