Compact AccelerometersSTI’s Compact Accelerometers have the same features as Standard Accelerometers except that they are smaller and lighter. They are designed to fit in tight locations and have the added benefit of having improved frequency response due to their smaller size. Using the Standard MS 2-Pin Connector, they are available in both Top and Side Exit. STI’s Lifetime Warranty applies. STI’s Compact Accelerometers are in stock and ready for immediate delivery. Accelerometer Extension Cables are also in Stock for immediate delivery.
Sort By:
1

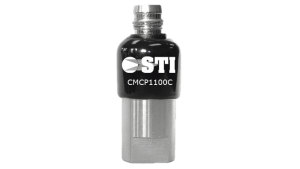

CMCP1100C Low Cost Industrial Accelerometer CMCP1100C Compact, M8 Connector

    • 100 mV/g ±10% IEPE
    • Optional 10 mv/C, 0-100°C Temp Output
    • Small ½” Footprint
    • 1/4"-28 UNF Male
    • (±3dB): 0.32Hz to 10kHz
    • 1.38" H x 0.5" Dia.
    • ±50 g, peak
    • 18-30 VDC IEPE
    • -65 to 185°F (-54 to 85°C)
    • 316L Stainless Steel
    • 3 Pin Male Gold Plated M8 Connector
CMCP1100C Compact Accelerometer

US MSRP: $109.00
Low Cost 2 Pin Compact Accelerometer CMCP770A Compact, Top Exit

  • 100mV/g ±10%
  • 2 Pin MS Connector, Top Exit
  • 0.8Hz to 19kHz (48 to 1,140k cpm)
  • 1 Second Setting Time
  • -67 to +266° F (-55 to 130° C)
  • 1/4" x 28 UNF Mounting Stud
  • Class I Division II Approved
  • Lifetime Warranty
CMCP770A Compact Accelerometer

US MSRP: $215.00

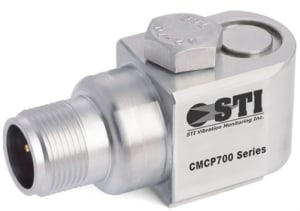

Low Cost 2 Pin Compact Accelerometer CMCP780A Compact, Side Exit

  • 100mV/g ±10%
  • 2 Pin MS Connector, Side Exit
  • 0.8Hz to 19kHz (48 to 1,140k cpm)
  • 1 Second Setting Time
  • -67 to +266° F (-55 to 130° C)
  • 1/4" x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
CMCP780A Datasheet

US MSRP: $260.00
