Temperature Sensors From STI Vibration Monitoring

Temperature sensors for industrial machinery include spring loaded bearing temperature sensors, like the CMCP1210 series of Tip sensitive RTD or Thermocouple sensors for bearings, blocks, and other solids. Mounting pads with integrated Temperature make it easy to add temperature measurements to existing accelerometer installations. Temperature Transmitters are compatible with RTD's, Thermocouple, or solid-state temperature sensors. The transmitters check for faults, process the temperature signal to determine overall amplitude, and output a 4-20 mA dc current that is proportional to a preset range.
No matter your needs, our sensors provide crucial data that helps businesses save time, money, and resources. Trust our temperature sensors to keep your equipment running smoothly and efficiently, giving you peace of mind and the power to stay ahead of any potential issues. With our sensors, you can rest assured that your equipment is in good hands.

Click on the image below to view the product page.

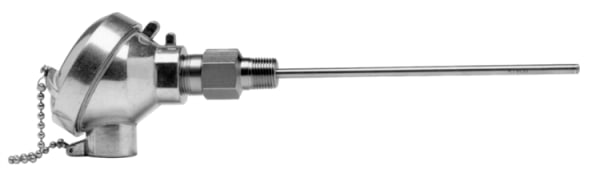

    Spring Loaded Temperature Sensor
    • Tip Sensitive RTD or Thermocouple
    • For use to 260° C (500° F)
    • Adjustable Spring-Loaded Holder with Fluid Seal
    • Aluminum or Stainless Steel Connection Head
    • For Bearings, Blocks and Other Solids
    • Explosion Proof Versions Available

    CMCP1210 RTD Data Sheet

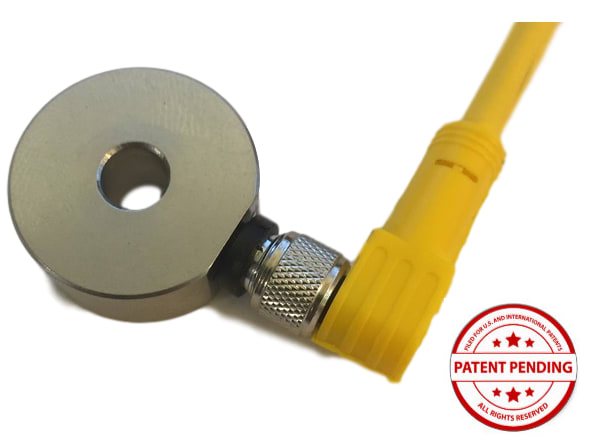

    CMCP200ET Mounting Pad with Electronic Temperature
    • Accelerometer Mounting Pad
    • 0° to 100° C (32° to 212° F)
    • 10 mv/°C
    • 0.5°C Accuracy
    • Blue/Common, Black/Signal, Brown/Power)
    • 4.0 to 30.0 VDC Power
    • 3-Pin M8 Male Connector
    • 1” D x 0.40 H
    • Through Hole for ¼”-28 Stud or Bolt
    • 16 RMS Finish One Side
    CMCP200ET Data Sheet

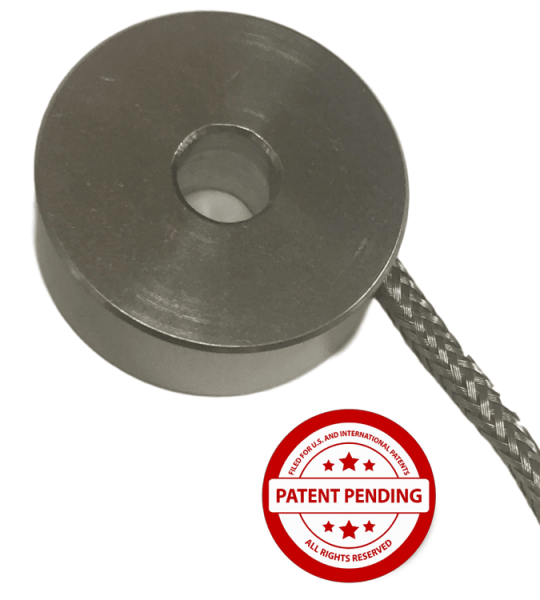

    CMCP200RTD Mounting Pad with Temperature
    • Accelerometer Mounting Pad
    • 3-Wire 100 Ohm Platinum RTD
    • -40° to 225°C (-40° to 437°F)
    • 1.4 mA, ±3850 ppm/°C
    • Conformal to DIN EN 60751 Class A
    • Integral Armored Braided Wire
    • 5, 10, 20 Meter Lengths
    • White/Red/Red Teflon Leads
    • 316SS 1” Dia. x 0.375 H
    • Through Hole for ¼”-28 Stud or Bolt
    • 16 RMS Finish for Accelerometer
    CMCP200RTD Data Sheet
    Solid State Temperature Transmitter/Monitor
    • 10mV/Deg C Input from Dual Output Sensors
    • Temperature Output (C or F)
    • Transmitter or Monitor
    • Voltage Detection
    • Type "T" Accelerometers
    • 4-20 mA Output
    • 2 Buffered Outputs
    • Fault (OK) Detection
    • CSA & UL Class 1 Division 2 Approved
    Display and Relay Module for Voltage or Current Output Sensors
    • Universal Display and Relay Module
    • Accepts Voltage, Current, RTD or Thermocouple Inputs
    • Compatible with any 4-20mA Sensor or Transmitter
    • Local LCD Display
    • Local Alert and Danger Indicators
    • 4-20 mA or Voltage Output
    • Two Relay Outputs
    • Latching or Non-Latching Relays
    • Adjustable Time Delay

    NPT Adapter 1/2" to 3/4"
    • CMCP1210 NPT Adapter
    • 1/2" to 3/4" NPT
    • 316 Stainless Steel
    • 1" Long
