STI's Digital Panel Meters have a large, easy to read LED and LCD displays. The 9.4 mm digits exhibit uniform intensity over the entire 0-5 VDC or 4-20 mA operating range. Connections to the signal source are made via a reliable, two-position, screw-type terminal block. Each display may be custom calibrated for the desired displayed range. The displays can be used with STI's Transmitters and Monitors or can be purchased in an Explosion Proof Housing for local display.
Sort By:
1

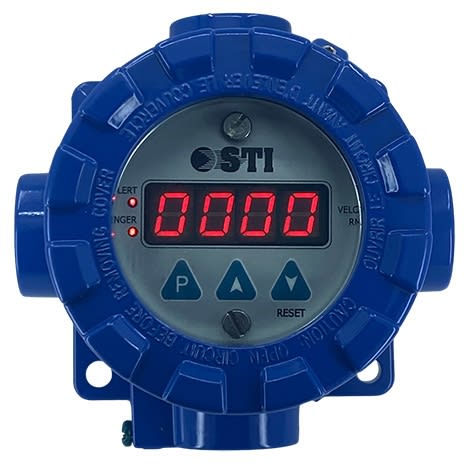

CMCP512XP CMCP512XP Explosioproof Programmable LED Display with Relay Outputs

  • Programmable LED Display
  • Class 1 Division 1 Explosionproof Enclosure
  • 4-20mA Input
  • Two Independent Relay Outputs
  • Front Panel Alarm Indicators
  • 4-20mA Retransmit Output
  • NEMA 4X, IP68 Polycarbonate Enclosure
  • UV and Corrosion Resistant
    CMCP512XP Datasheet

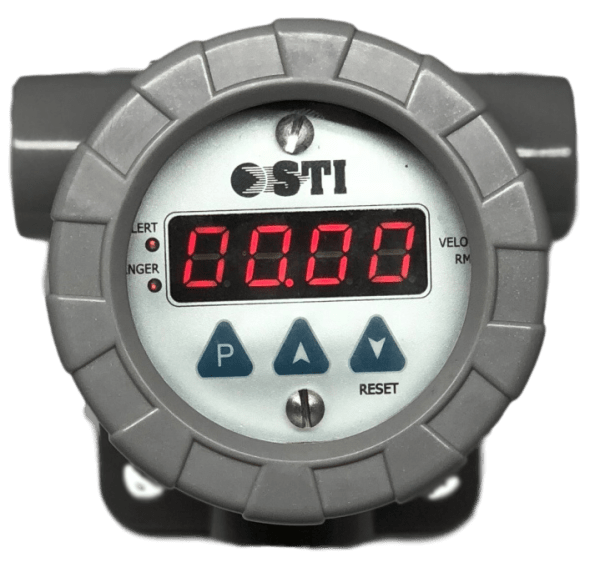

    CMCP512D CMCP512D Programmable LED Display with Relay Outputs

    • Programmable LED Display
    • Daylight Visible
    • 4-20mA Input
    • Two Independent Relay Outputs
    • Front Panel Alarm Indicators
    • 4-20mA Retransmit Output
    • NEMA 4X, IP68 Polycarbonate Enclosure
    • UV and Corrosion Resistant
      CMCP512D Datasheet

      0-5 VDC LED Display CMCP505 LED Digital Display for 0-5 VDC Monitors

      Bright Red 9.4mm LED Display

      • 3.5 Digit Display
      • 0-5 VDC Input
      • 24 VDC Powered
      • 2.5 Updates per Second
      • Accuracy 0.1% Full Scale
      • o to 60°C (140°F)
      • 0-95% Humidity Non-Condensing
        • CMCP505 Tech Note

      4-20 mA LED Display CMCP510 LED Digital Display for 4-20 mA Transmitters


      • Bright Red 9.4mm LED Display
      • 3.5 Digit Display
      • Loop Powered (4-20mA)
      • 2.5 Updates per Second
      • Accuracy 0.1% Full Scale
      • o to 60°C (140°F)
      • 0-95% Humidity Non-Condensing


      CMCP510 LED Display

      4-20 mA LCD Display CMCP511 LCD Digital Display for 4-20 mA Transmitters

      • 9.4mm LCD Display
      • 3.5 Digit Display
      • Loop Powered (4-20mA)
      • 2.5 Updates per Second
      • Accuracy 0.1% Full Scale
      • o to 60°C (140°F)
      • 0-95% Humidity Non-Condensing

      Display and Relay Module for Voltage or Current Output Sensors CMCP730D Relay and Display Module

      • Universal Display and Relay Module
      • Accepts Voltage, Current, RTD or Thermocouple Inputs
      • Compatible with any 4-20mA Sensor or Transmitter
      • Local LCD Display
      • Local Alert and Danger Indicators
      • 4-20mA or Voltage Output
      • Two Relay Outputs
      • Latching or Non-Latching Relays
      • Adjustable Time Delay

      CMCP730D Datasheet



      1
