Accelerometer Mounting Pads are used to provide a quality surface to mount Accelerometers. By ensuring a smooth surface and perpendicular mounting hole for the Accelerometer, they improve the sensor's frequency response and repeatability of data collection. Accelerometer Mounting Pads may be either stud mounted or epoxy mounted to the prepared area of the machine's bearing. Mounting Pads without holes may be mounted as place markers for Portable Data Collection to ensure location repeatability and quality data trending.
Sort By:
1

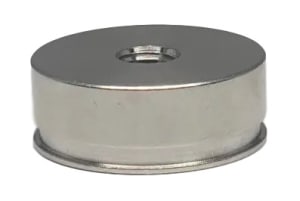

Accelerometer Mounting Discs CMCP200 Accelerometer Mounting Pads

    • 1/4-28 Threaded Thru Hole
    • For Adhesive or Stud Mounting Pad
    • 316 Stainless Steel
    • 1" Diameter (2.54 cm)
    • 1/4" or 3/8" Thick (6.4 or 9.5mm)
    • Lip Around Base for Adhesive to Hold

    CMCP200 Mounting Pad Data Sheet

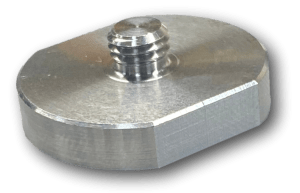

    Accelerometer Mounting Discs CMCP200C Male Cementing Pad

      • For Adhesive Mount
      • 1/4-28 UNF Male Stud
      • 316 Stainless Steel
      • 1" Diameter (25.4mm)
      • 3/8" Thick (6.4/9.5mm)
      • Finished Mounting Surface

        Mounting Pads

        Accelerometer Mounting Discs CMCP200E Adhesive Mounting Pad

          • 1/4-28 Partially Threaded Hole
          • For Adhesive Mounting
          • 316 Stainless Steel
          • 1" Diameter (25.4mm)
          • 3/8" Thick (6.4/9.5mm)
          • Finished Mounting Surface
          • Abraded Collar for Superior Bonding

            Mounting Pads

            Accelerometer Isolators CMCP200I Isolated Mounting Pad

              • Provides Electrical Isolation for Sensors
              • Stainless Steel Body
              • Corrosion Resistant
              • 170 Deg. C Temperature Rating
              • For 1/4-28 Threaded Sensors (Adapters Available)
              • 0.82" (20mm) Diameter

                CMCP200I Isolated Mounting Pad

                Accelerometer Mounting Discs CMCP200M Magnetic Accelerometer Mounting Pads

                  • 1/4-28 Threaded Thru Hole
                  • Ferrous Material for Magnet Attachment
                  • 416 Stainless Steel
                  • For Adhesive or Stud Mounting Pad
                  • 1" Diameter (2.54 cm)
                  • 1/4" or 3/8" Thick (6.4 or 9.5mm)
                  • Lip Around Base for Adhesive to Hold

                  CMCP200 Mounting Pad Data Sheet

                  Accelerometer Mounting Discs CMCP200MP Measurement Point Marker

                  • Magnetic Measurement Point Marker
                  • Easily Identify Measurement Locations
                  • Adhesive Mount
                  • 1" Diameter
                  • 416 Steel

                  CMCP200 Mounting Pad Data Sheet

                  Accelerometer Mounting Discs CMCP200T Triaxial Mounting Block

                  • Vertical, Horizontal and Axial Positions
                  • Single Bolt Mount
                  • 316 Stainless Steel
                  • Smoothed Sides for Ideal Surface
                  • Mounting Hardware Included

                  CMCP200T Mounting Block
