The loop powered 4-20 mA output sensors are designed to interface directly to an analog input card on a Control System (PLC or DCS). The 4-20 mA output is proportional to the full-scale range in terms of Velocity and are capable of transmitting signals over a long distance without signal loss.
Sort By:
1
CMCP420VT Loop-Powered Vibration Transmitter CMCP420VT Loop-Powered Vibration Velocity Transmitter with Dynamic Output

  • Velocity and Dynamic (100mV/g) Output
  • Solid State Reliability
  • 2-Wire Loop Powered (4-20mA)
  • 3/4" NPT for Conduit Connections
  • Industry Standard 1/4"x 28 UNF Stud Mounting
  • Optional Display
  • UL and CSA Approved Class 1, Division 2, Group B-D
  • CE Approved
  • RoHS Compliant
CMCP420VT Loop-Powered Vibration Transmitter

CMCP420VT-T Dual Parameter Loop-Powered Vibration and Temperature Transmitter CMCP420VT-T Dual Parameter Loop-Powered Vibration and Temperature Transmitter

  • Dual Parameter (Vibration and Temperature)
  • Solid State Reliability
  • 2-Wire Loop Powered (4-20 mA)
  • 3/4" NPT for Conduit Connections
  • Industry Standard 1/4"x 28 UNF Stud Mounting
  • Optional Display
  • UL and CSA Approved Class 1, Division 2, Group B-D
  • CE Approved
  • RoHS Compliant
CMCP420VT Loop-Powered Vibration Transmitter

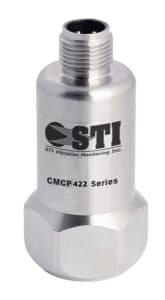

Top Exit MS 2 Pin 5015 Connector Transmitter CMCP422VT-C Series Loop Powered Velocity Transmitter, Top Entry Connector

  • 4-20 mA Vibration Velocity Sensor
  • 10-1.0 kHz ISO Standard Frequency Range
  • RMS or Peak Detection
  • Top Entry, 2 Pin MS Connector or 4 Pin M12 Connector
  • Class 1 Division 2 Approved
  • Class 1 Division 1 with Barrier
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248 °F (-25 to +120 °C) Temperature Range
  • 1/4" x 28 UNF Mounting Stud

CMCP422VT-C Data Sheet

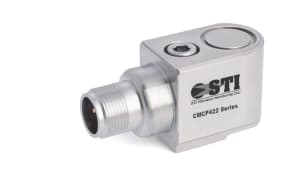

Side Exit MS 2 Pin 5015 Connenctor Transmitter CMCP422VTS-C Series Loop Powered Velocity Transmitter, Side Entry Connector

  • 4-20 mA Vibration Velocity Sensor
  • 10-1.0 kHz ISO Standard Frequency Range
  • RMS or Peak Detection
  • Side Entry, 2 Pin MS Connector or M12 Connector
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248 °F (-25 to +120 °C) Temperature Range
  • 1/4" x 28 UNF Captive Bolt
CMCP422VTS-C Data Sheet

Top Exit MS PUR Submersible Accelerometer CMCP422VT-IP Series Loop Powered Velocity Transmitter, Integral Submersible PUR Cable (IP68)

  • 4-20 mA Vibration Velocity Sensor
  • 10-1.0 kHz ISO Standard Frequency Range
  • RMS or Peak Detection
  • Top Entry Integral PUR Cable (IP68)
  • Class 1 Division 2 Approved
  • Class 1 Division 1 with Barrier
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248 °F (-25 to +120 °C) Temperature Range
  • 1/4" x 28 UNF Mounting Stud

CMCP422VT-IP Data Sheet

Submersible Vibration Transmitter CMCP422VTS-IP Series Loop Powered Velocity Transmitter, Side Entry Integral Submersible PUR Cable (IP68)

  • 4-20 mA Vibration Velocity Sensor
  • 10 Hz -1.0 kHz ISO Standard Frequency Range
  • RMS or Peak Detection
  • Side Entry Integral PUR Cable (IP68)
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248 °F (-25 to +120 °C) Temperature Range
  • 1/4" x 28 UNF Captive Bolt

CMCP422VTS-IP Data Sheet

Velocity Transmitter, Top Exit with Integral Braided Cable CMCP422VT-I Series Loop Powered Velocity Transmitter, Top Entry Integral Armored Cable (IP65)

  • 4-20 mA Vibration Velocity Sensor
  • 10 Hz - 1.0 kHz ISO Standard Frequency Range
  • RMS or Peak Detection
  • Top Entry Integral Braided Armor Cable
  • Class 1 Division 2 Approved
  • Class 1 Division 1 with Barrier
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248 °F (-25 to +120°C) Temperature Range
  • 1/4" x 28 UNF Mounting Stud

CMCP422VT-I Data Sheet

Velocity Transmitter, Side Exit with Integral Braided Cable CMCP422VTS-I Series Loop Powered Velocity Transmitter, Side Entry Integral Armored Cable (IP65)

  • 4-20 mA Vibration Velocity Sensor
  • 10 Hz - 1.0 kHz ISO Standard Frequency Range
  • RMS or Peak Detection
  • Side Entry, Integral Overbraided Cable
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248 °F (-25 to +120 °C) Temperature Range
  • 1/4" x 28 UNF Mounting Stud

CMCP422VTS-C Data Sheet

Display and Relay Module for Voltage or Current Output Sensors CMCP730D Relay and Display Module

  • Universal Display and Relay Module
  • Accepts Voltage, Current, RTD or Thermocouple Inputs
  • Compatible with any 4-20mA Sensor or Transmitter
  • Local LCD Display
  • Local Alert and Danger Indicators
  • 4-20mA or Voltage Output
  • Two Relay Outputs
  • Latching or Non-Latching Relays
  • Adjustable Time Delay

CMCP730D Datasheet

CMCP420VT/Ex IECEx/ATEX Approved Loop-Powered Vibration Velocity Transmitter with Dynamic Output CMCP420VT/Ex IECEx/ATEX Approved Loop-Powered Vibration Velocity Transmitter with Dynamic Output

  • IECEx and ATEX Approved (Exd)
  • 4-20mA Velocity Output
  • 100mV/g Dynamic Output
  • 2 to 2,000 Hz (120 to 120kcpm)
  • Two Ranges Available
  • Flameproof Connection Head Included
  • RoHS Compliant
CMCP420VT/Ex Datasheet
