STI Vibration Monitoring Inc. offers a comprehensive line of Electronic Vibration Switches for Industrial Rotating Machinery. The Switches address both, new installations and retrofitting obsolete units. Easy to mount and setup. The CMCP-DVS-GP General Purpose can be deployed on any rotating machinery in many Industries, whereas the CMCP-DVS-EX is mounted in an Explosion Proof Enclosure.
In addition, the CMCP1000 meets the HPI Industries API-670 and the Low Cost Digital CMCP-DVS Series provides the essential features for OEMs (Original Equipment Manufacturers) for a very competitive price. Models include an internal 100 mV/g accelerometer, integrate to Velocity terms and provide two levels of alarm along with adjustable time delays. An External sensor can be used with all models for optimal sensor placement.
Sort By:
1
CMCP-DVS Digital Vibration Switch CMCP-DVS-EX Digital Vibration Switch, Explosion Proof

  • FM, ATEX and IECEx Approved
  • Optional XP External Reset Switch
  • Programmable
  • 2 to 2,000 Hz
  • 2 levels of Alarm
  • Red 0.5” LED Display
  • 5 Amp 230 VAC Relays
  • Programmable Time Delay
  • Latching or Non Latching Alarms
  • Internal IEPE Accelerometer
  • True RMS Velocity
CMCP-DVS-EX Vibration Switch

CMCP-DVS-GP Digital Vibration Switch CMCP-DVS-GP Digital Vibration Switch, General Purpose w/External Reset Switch

  • Rugged Enclosure, Rated IP68
  • External Reset Switch Included
  • Programmable
  • 2 to 2,000 Hz
  • 2 levels of Alarm
  • Red 0.5” LED Display
  • 5 Amp 230 VAC Relays
  • Programmable Time Delay
  • Latching or Non Latching Alarms
  • Internal IEPE Accelerometer
  • True RMS Velocity
CMCP-DVS-GP Vibration Switch

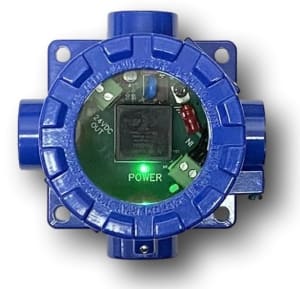

CMCP-DVS-PS Power Supply, Explosion Proof CMCP-DVS-PS Power Supply, Explosion Proof

  • Universal Power Supply
  • 24 VDC Output, 200 mA (5 Watt)
  • 85 to 305 VAC Input or
  • 100 to 430 VDC Input
  • Load Regulation, +/-1%
  • FM Class 1, Division 1, Group B, C, D Approved
  • High Ingress Protection (IP68)
  • Highly Reliable (MTBF 2.6 million Hours)
  • Internal Green LED-On Light
  • Automatic Fuse Reset
  • Protection from high Voltage Spikes (MOV and TVS)
  • Temperature Range -40 to 185 °F (-40 to 85 °C)
CMCP-DVS-PS Power Supply

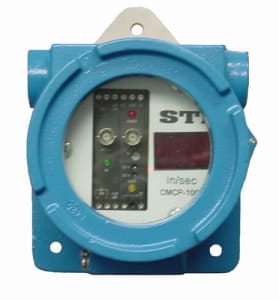

CMCP1000 Explosion Proof Monitor CMCP1000 Dual Limit Solid State Vibration Switch

  • Explosion Proof
  • Single Channel
  • Solid State Reliability
  • Meets API-670
  • Interior Sensor
  • Two Levels of Alarm with Relays
  • True "OK" Circuitry with Relay
  • Adjustable Time Delays
  • Trip Multiply
  • 4-20 mA Output
  • Remote Reset
  • Bright LED Digital Readout
CMCP1000 Vibration Switch Data Sheet

Explosion Proof Vibration Switch CMCP1000C Dual Limit Solid State Vibration Switch with Large Enclosure

  • Explosion Proof
  • Single Channel
  • Solid State Reliability
  • Meets API-670
  • Interior Sensor
  • Two Levels of Alarm with Relays
  • True "OK" Circuitry with Relay
  • Adjustable Time Delays
  • Trip Multiply
  • 4-20 mA Output
  • Remote Reset
  • Bright LED Digital Readout

CMCP1000C Data Sheet

CMCP423VTA Compact Vibration Switch CMCP423VTA Compact Vibration Switch

  • Low Cost, Compact Vibration Switch
  • 4-20mA and Relay Output
  • Vibration Velocity RMS
  • 1.0 or 2.0 Ranges (25.4 or 50.8mm/sec)
  • 10 to 1kHz Frequency Response
  • Adjustable Alarm Level (0-100% Full Scale)
  • Adjustable Time Delay (0-60 Seconds)
  • Locking Adjustments
  • 4 Pin Eurofast Connector
  • IP67 Rated
