Acrylic Adhesive for Accelerometer Mounting

CMCP210 Acrylic Adhesive Bypacs For Accelerometer Mounting

STI
$0.00
CMCP210 Acrylic Bypac Data Sheet
Choose your options:
Hazardous Material Shipping Added
Hazardous Material Shipping Added:
Product Code: CMCP210
  • Acrylic Adhesive
  • Bypac Packaged
  • Hands Off Mixing
  • -40°F to 300°F or
  • -40°C to 149°C
  • Mounts 2 Accelerometers
  • MSDS Available

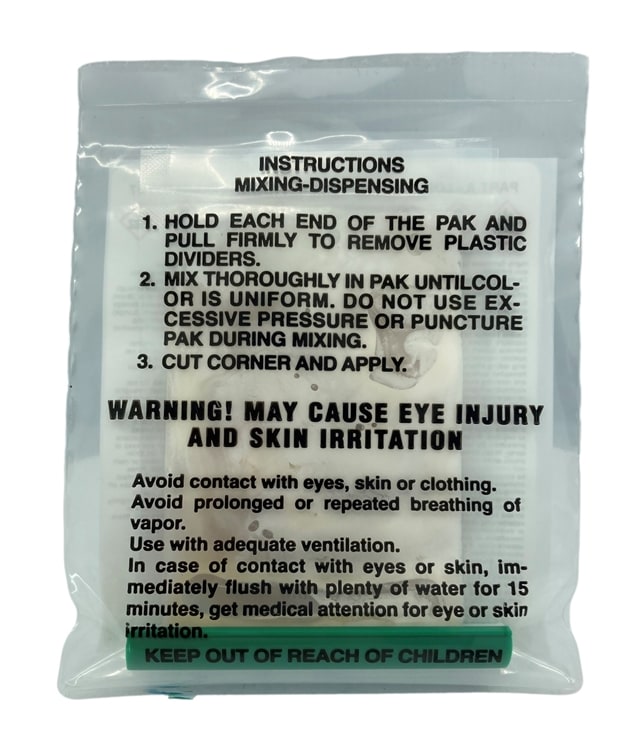

Acrylic Adhesive Bypacs are an easy to use solution for gluing Accelerometer Mounting Pads to a prepared surface area on the bearing housing. The adhesive is prepared inside the Bypac by removing the plastic separator and kneading together the two adhesive components. A corner of the bag is then removed to allow easy dispensing of the mixture. Each Bypac will glue two (2) Accelerometer Mounting Pads. A Material Safety Data Sheet for this product can be supplied on request.
Note: This item is classified as a Hazardous Material. For all shipment methods other than UPS Ground, there will be a $75.00 HazMat Handling Fee added at the time of shipment. This fee covers the required shipping container and all necessary paperwork.

CMCP210 Acrylic Bypac Data SheetCMCP210 MSDS

CMCP-210 acrylic adhesive bonds a wide variety of prepared or unprepared metals and engineered plastics. CMCP-210 adhesive is specifically formulated to provide the highest impact and peel strengths available in a room temperature curing adhesive. CMCP-210 adhesive replaces welding, brazing, riveting and other mechanical fastening methods especially in low temperature environments subject to high impact or high peel loads.

Instructions:

Surface Preparation:
Remove grease, loose contamination or poorly adhering oxides from metal surfaces. Normal amounts of mill oils and drawing compounds usually do not present a problem in adhesion. Most plastics require a simple cleaning before bonding. Some may require abrading for best performance.

Mixing:
Hand mix or apply with automatic meter/mix/dispense equipment. Mix resin with the proper amount of accelerator. Once mixed, the acrylic adhesive cures rapidly.

Application:
Apply to substrates and join. Curing The cure is completed in 24 hours at room temperature. The cure rate can be accelerated by applying modest heat. The surfaces need to be held in contact during the entire cure period. If heat cured, do not exceed temperatures of 66°C, 150°F.

Clean Up:
Uncured Adhesive - Clean excess adhesive on the bonded assembly, as well as mixing and application equipment, before the adhesive cures. Use hot water and detergent, or an organic solvent. Cured Adhesive - Heat the cured adhesive to 204° C (400°F) or above to soften the adhesive.
