CMCP760T Triaxial, Side Exit

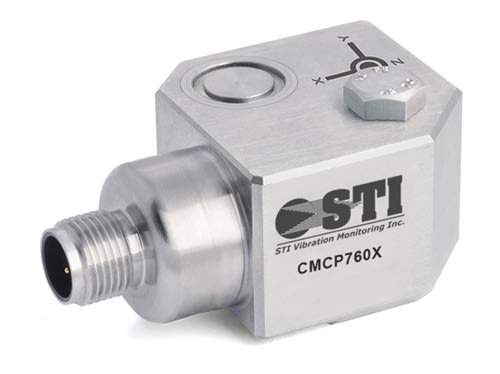

Side Exit Triaxial Accelerometer



CMCP760T Triaxial Side Exit Accelerometer

Suggested Price: (Log in to view)

Product Code: CMCP760T

Description Technical Specs

Features:
Sensitivity (Per Axis): 100 mV/g 10%
Frequency Response (3dB): 0.8 Hz to 15 kHz (48 to 900k CPM)
Dynamic Range: 80 g, peak
Settling Time: 2 Seconds
Mounting: 1/4"-28 UNF Mounting Bolt
Power Requirements: 18-30 VDC
Temperature Range: -67 to +284 F (-55 to +140 C)
Case Material: 316L Stainless Steel
Connector: 4 Pin M12
Warranty: Lifetime Quality Warranty

The CMCP760T Side Exit Triaxial Accelerometer is the ideal accelerometer for most types of rotating equipment. The CMCP760T is lightweight and can be use for route based measurements or for permanently installed applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP760T is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP605 series. Additional sensitivities such as 50 mV/g, 250 mV/g and 500 mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Contact STI for more details.


CMCP760T Triaxial Side Exit Accelerometer
