CMCP422VT-I Series Loop Powered Velocity Transmitter, Top Entry Integral Armored Cable (IP65)

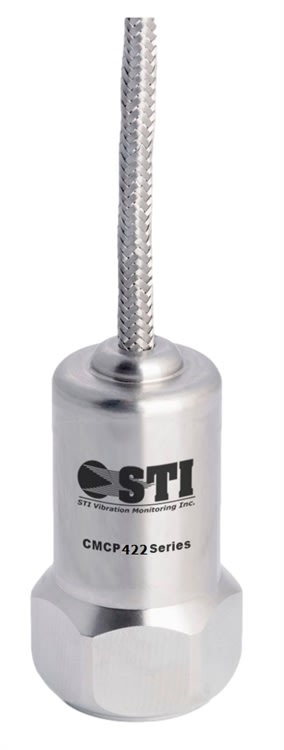

Velocity Transmitter, Top Exit with Integral Braided Cable



CMCP422VT-I Data Sheet

MSRP: (Log in to view)

Availability: Usually Ships in 24 to 48 Hours
Product Code: CMCP422VT-I

422 Series Range


Signal Detection


Cable Length



Description Technical Specs

Typical Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.


  • Loop Powered
  • Velocity Output (ISO 10 Hz -1.0 kHz)
  • RMS or Peak Detection
  • Top Entry, Integral Braided Armor Cable
  • Class 1 Division 2 Approved
  • Class 1 Division 1 with Barrier
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +248 F (-25 to 120 C) Temperature Range
  • 1/4" x 28 UNF Mounting Stud Included
The CMCP422VT-I Series are loop powered 4-20mA output sensors which are capable of interfacing directly to an analog input card on a PLC or DCS system. The 4-20mA output is proportional to the full scale range in terms of Velocity and are capable of transmitting signals over a long distance without signal loss. The CMCP422VT-I features an integral braided armor cable rated for IP65.
