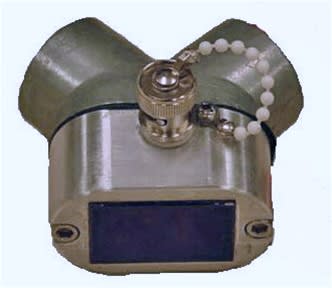

CMCP420LED/LCD Display
Display for CMCP-420VT



CMCP420VT Loop-Powered Vibration Transmitter

MSRP: (Log in to view)


Product Code: CMCP420LED

Display Type

Display Options*:
Output Range



Description Technical Specs

Features:
  • CE Approved
  • Solid State Reliability
  • Integral Sensor
  • 4-20 mA Output
  • Dynamic Signal Output

The CMCP420VT is a solid state, loop powered vibration transmitter. It provides a 4-20 mA output that is proportional to overall vibration in terms of velocity. The CMCP420VT continuously monitors machinery health and transmits directly into a PLC or DCS for trending, alarm and machine shutdown. In addition, the CMCP420VT provides access to the dynamic transducer output. Portable data collector/analyzers can be utilized for detailed machine fault analysis.

Simple Installation:
Simply mount the CMCP420VT into a tapped hole in the bearing housing or machine case, connect two wires into a 4-20 mA loop, and you are ready to interface into a PLC or DCS. Electrical conduit may be connected directly to the top 3/4" NPT fitting. The CMCP420VT has a tapped 1/4"-28 UNF hole and has several adapters to fit almost any application. If the optional LED display is ordered it is shipped loose, and is a simple installation.

Documents Available:
CMCP420VT Loop-Powered Vibration Transmitter CMCP420VT Series ManualCMCP420 Assembly InstructiionsCMCP420VT Tech Note 110CMCP420VT Wiring Instructions
