CMCP422VT-M12 Series Loop Powered Velocity Transmitter, Top Entry M12 Connector

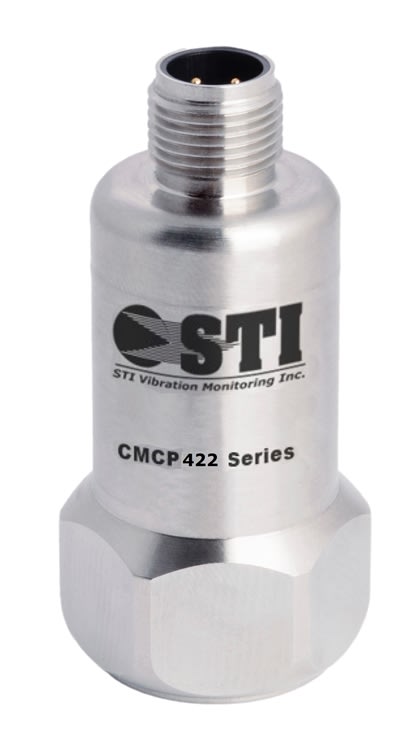

Top Exit M12 Connector Transmitter



CMCP422VT-M12 Data Sheet

Suggested Price: (Log in to view)

Availability: Usually Ships in 24 to 48 Hours
Product Code: CMCP422VT-M12

422 Series Range


Signal Detection



Description Technical Specs

Typical Applications
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.


  • Loop Powered
  • Velocity Output (ISO 10-1kHz)
  • RMS or Peak Detection
  • Top Entry, M12 Connector
  • Class 1 Division 2 Approved
  • Class 1 Division 1 with Barrier
  • Interfaces Directly to PLC/DCS Systems
  • -13 to +194F (-25 to 90C) Temperature Range
  • 1/4" x 28 UNF Mounting Stud Included
The CMCP422VT-M12 Series are loop powered 4-20mA output sensors which are capable of interfacing directly to an analog input card on a PLC or DCS system. The 4-20mA output is proportional to the full scale range in terms of Velocity and are capable of transmitting signals over a long distance without signal loss. The M12 connector option allows the sensor to work with a separate cable assembly such as the CMCP605M series cables.
