CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90)
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 1 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 2 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 3 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 1 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 2 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 3 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 1 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 2 of 0
CMCP5209 Coiled Cable for Single Axis Accelerometer for the Microlog dBx, (CMVA 90) - Image 3 of 0

CMCP5209 Coiled Cable for Single Axis Accelerometers with MS 5015 Connector

$
Choose your options:
Safety Breakaway(required):
Product Code: CMCP5209

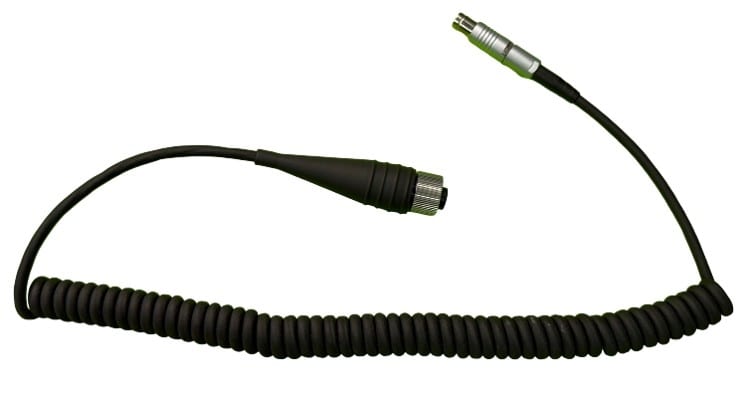

The CMCP5209 Coiled Cable connects to the CH ALL input on the dBX and has a 2 socket MS 5015 (MIL 5015) connector on the other end for use with standard accelerometers. Cables are available in either 6’ (1.8m) or 10’ (3m) extended lengths and can also be supplied with a safety breakaway.

CMCP5209 6’ (1.8m) Extended Coiled Cable, 6 Pin Fischer to MS 5015
CMCP5209-06S 6’ (1.8m) Extended Coiled Cable, 6 Pin Fischer to MS 5015, with Safety Breakaway
CMCP5209-10 10’ (3m) Extended Coiled Cable, 6 Pin Fischer to MS 5015
CMCP5209-10S 10’ (3m) Extended Coiled Cable, 6 Pin Fischer to MS 5015 with Safety Breakaway

Specifications
  • 6 Positions Male Fischer for dBX ALL CH Port
  • 2 Socket MS 5015, Size 10S, for Sensor Side
  • 6’ or 10’ Extended Lengths (1.8, or 3 m)
  • With or Without Safety Breakaway
  • TPU Jacketed Cable
  • Rated to 120°C
