CMCP5301 Single Channel Monitor

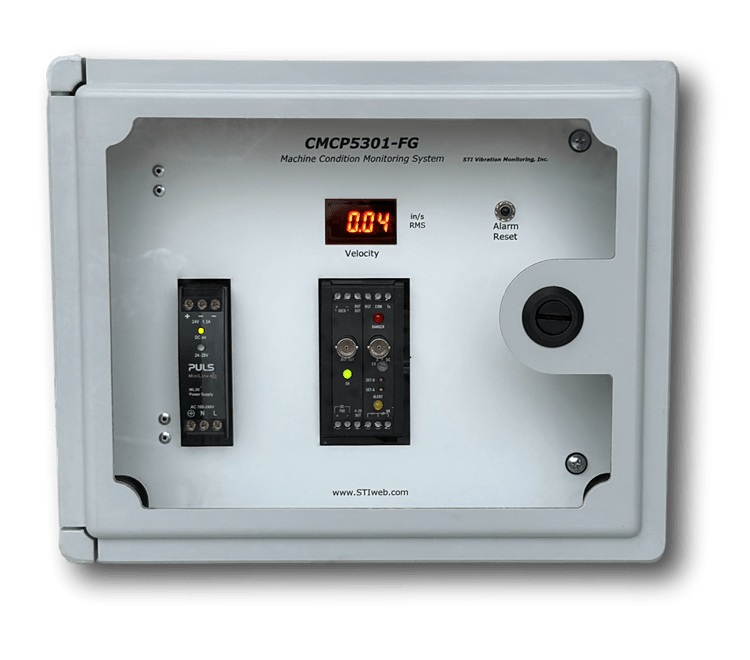

CMCP5300 Complete General Machine Monitoring Systems

CMCP5301 Single Channel Monitor Data Sheet

Suggested Price: (Log in to view)

Availability: Usually Ships in 1 to 2 Weeks
Product Code: CMCP5301

Display Type

Display Options*:


Enclosure Type

Description Technical Specs Extended Information
  • Single Channel (1 Sensor Input) Monitoring Protection System
  • Low Cost
  • Meets API 670
  • Two Levels of Alarm with Relays
  • True OK Circuitry with Relay
  • Adjustable Time Delays
  • Trip Multiply
  • 4-20mA Output
  • Buffered Transducer Output
  • Reset Button
  • Bright LED Digital Readout
  • 100mV/g ICP Accelerometer Input
  • Class 1 Division 2 Rated Monitors

The CMCP5301 Series are complete pre-packaged solutions for all types of rotating machinery. STIs CMCP500A Series Single Channel Vibration and Temperature Monitors allow you to create a custom system for your exact application. By using single channel transmitters the exact amount of measurement points can be monitored, significantly lowering the cost compared to rack based systems that come with a minimum channel amount per card. The CMCP5301 Series Monitoring Systems are designed to be used with the CMCP530A-100A Vibration Velocity Monitor but can be retrofitted for use with any other CMCP500A Series Monitors, whether your application calls for proximity probes, accelerometers, RTDs, thermocouples or any other industry standard sensor STI can retrofit the CMCP5301 to accommodate your needs. Other enclosure types are available for systems that require more than 6 channels. STIs Custom Products Division can also provide custom built systems around your requirements.

CMCP5301 Single Channel Monitor Data Sheet
