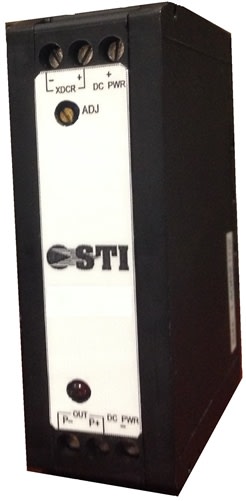

CMCP576 Proximity Probe to TTL Converter

CMCP576 Proximity Probe to TTL Converter

Product Code: CMCP576
The CMCP576 Pulse Transmitter is a 24VDC powered device which converts the voltage input from an Proximity Probe into a 0-5VDC TTL signal to interface with monitoring systems or PLC which cannot accept a speed input from an Proximity Probe. The CMCP576 allows the user to adjust a single threshold in order to only trigger off a specific target by narrowing in on the specific voltage output of the Proximity Probe System. An internal jumper allows the user to select between a recessed or raised target such as a key or keyway.

Input Power: 22 to 24 VDC
Consumption: 20mA Max (15mA Typical)
Input Signal: Eddy Current Probe (mV/mil)
Mounting:35mm Din Rail
Frequency Range: 0-15kHz
Accuracy: 0.01%
Deadband: 0.2V Nominal
Isolation: Three Way Isolation
Connection: Screw Terminals, 16 to 22AWG
Case Material: Black Polyamide
LED Operation:
LED On: 5VDC TTL Output
LED Off: 0VDC Output
LED will flash as TTL output pulses, may seem steady at high speeds
Dimensions: 1"x2.11"x3.95" (25.4x79x100mm)
Weight: 1.6 Oz (45.35 g)
Operating Temperature: -20 to +80 Deg. C
Relative Humidity: 0-95% Non-Condensing
Threshold Drift: <200ppm/Deg C

CMCP576 Datasheet
