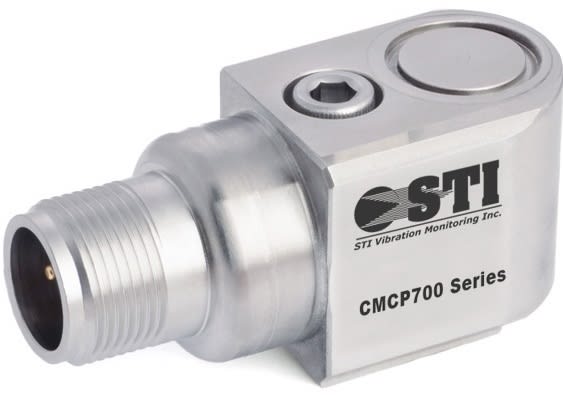

CMCP785T Dual Output, Side Exit
Top Exit General Purpose Accelerometer with Temperature Output

CMCP785T Dual Output Accelerometer
US MSRP: $225.00

Product Code: CMCP785T

  • 100mV/g 10%
  • 10mV/C Temperature Output
  • 3 Pin MS Connector, Top Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284 F (-55 to 140 C)
  • 1/4" x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
The CMCP785T Side Exit General Purpose Accelerometer with Temperature Output is the ideal accelerometer for on most types of rotating equipment. The CMCP785T is lightweight and can be use for magnet or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP785T is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series. Additional sensitivities such as 10mV/g, 30mV/g, 50mV/g, 250mV/g and 500mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Contact STI for more details.

Sensitivity: 100mV/g 10%
Temperature Output: 10mV/C (0-1VDC)
Frequency Response (3dB): 0.8Hz to 15kHz (48 to 900k CPM)
Dyanamic Range: 80 g, peak
Settling Time: 2 Seconds
Mounting: 1/4"-28 UNF Captive Bolt
Power Requirements: 18-30 VDC
Temperature Range: -67 to 284F (-55 to 140C)
Case Material: 316L Stainless Steel
Connector: 3 Pin MIL-C-5015
Approvals: CSA/UL Class I Division II Approved, Groups B, C,D
