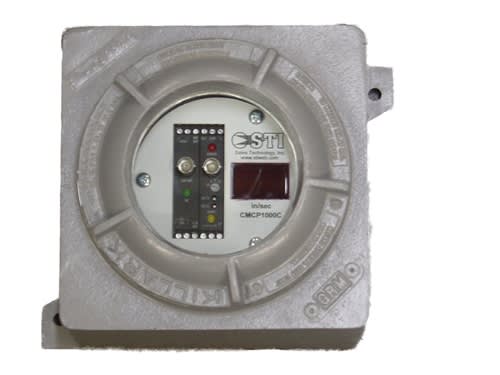

Explosion Proof Vibration Switch

CMCP1000C Dual Limit Solid State Vibration Switch with Large Enclosure

CMCP1000C Data Sheet
Choose your options:
Output Range
Output Range:
Relay State
Relay State:
Optional Reset Switch
Reset Switch:
CMCP1000 Power
CMCP1000 Power:
Product Code: CMCP1000C
  • Explosion Proof
  • Solid State Reliability
  • Integral Sensor (Also Uses External Sensor)
  • Two Levels of Alarm with Relays
  • True “OK” Circuitry with Relay
  • Adjustable Time Delays
  • Trip Multiply
  • 4-20mA Output
  • Remote Reset
  • Buffered Transducer Output
  • Bright LED Digital Readout
  • 0-1.0 in/sec, 0-2.0 in/sec, 0-25 mm/sec or 0-50 mm/sec RMS Range
The CMCP1000C is the same as the CMCP1000 but with a larger enclosure which allows the user more room to work in. The CMCP1000C is a single channel Vibration Monitor with an integral accelerometer packaged in an explosion-proof housing that is suitable for NEC Division I hazardous areas. Designed to comply with rigid API670 standards, the CMCP1000C far exceeds the capabilities of competitive vibration switches. In addition to the key features listed above, the CMCP1000 offers a buffered transducer output for detailed diagnostics and optional high-pass and low-pass filters to monitor specific frequency bands.

    CMCP1000C Data SheetCMCP1000C Vibration Switch Drawing

    Range: English 0-1.0, 0-2.0 in/sec RMS, Metric 0-25, 0-50 mm/sec RMS
    Power: Accepts 110 VAC or 220 VAC, 60 or 50 Hz
    Frequency Response: (-3 dB) 2 Hz to 2 kHz
    Buffered Output: BNC Connector 0-20 kHz
    Accuracy: 0.5 % of Full Scale
    Range Output: 4-20 mA proportional to the full scale range
    Relay output for Alert and Danger alarms
    Maximum Load: 600 Ohms Resistive per channel
    Case: Isolated

    Operating Temp.: -20oC to +80oC (-4oF to +176oF)
    Storage Temp.: -55oC to +125oC (-67oF to +257oF)
    Relative Humidity: 0 - 95% Non-Condensing
    Approvals: FM, CSA, UL Class I (BCD), Class II (E,F,G)
